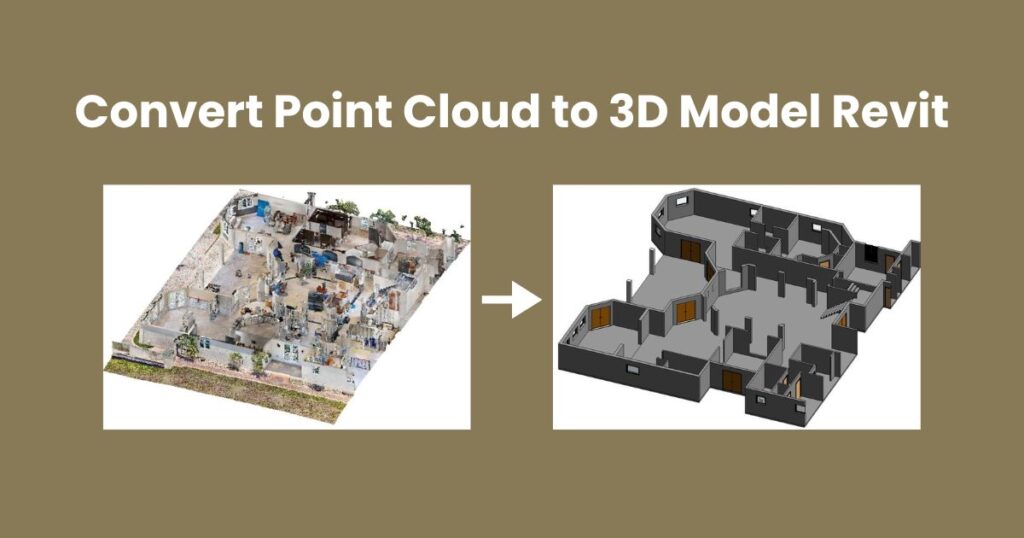

In the world of architecture, engineering, and construction (AEC), the use of point clouds has become a true game-changer. Whether you’re working on a renovation project, restoring a historic building, or managing the lifecycle of an as-built structure, converting point cloud data into a 3D model using Autodesk Revit can significantly save time, reduce manual errors, and enhance modeling accuracy.
In this blog post, we’ll walk you through the process of converting point cloud data into a detailed 3D model in Revit. We’ll explore everything from understanding what point clouds are to using them effectively in your Revit workflow, and even cover some third-party tools that can make the job easier.
What is a Point Cloud?
A point cloud is a collection of millions—or even billions—of data points captured in 3D space, usually generated by laser scanning or LiDAR technologies. These individual points collectively represent the external surfaces of real-world objects, buildings, terrains, and environments with exceptional accuracy and density.
Point clouds are commonly used in professional workflows for:
- As-built documentation of existing buildings and structures
- Renovation, retrofitting, and remodeling based on current site conditions
- Historical building preservation through digital archiving
- Clash detection, coordination, and validation in BIM workflows
This digital representation enables professionals to bring real-world accuracy into their 3D modeling environment.
Why Convert Point Cloud to 3D Model in Revit?
Revit is a leading Building Information Modeling (BIM) software developed by Autodesk. It allows AEC professionals to design, visualize, and document complex building systems and structures with intelligent components. Convert point cloud to 3D model Revit offers several valuable benefits, including:
- Generating highly accurate floor plans, elevations, and section views based on real-world data
- Creating parametric, editable models directly from scanned structures
- Integrating existing conditions with new design elements to detect spatial issues early
- Enhancing collaboration and coordination across disciplines by sharing precise models
This workflow is especially vital for renovation projects where blueprints may be outdated or unavailable.
Step-by-Step Guide: Convert Point Cloud to 3D Model in Revit
Step 1: Acquire Point Cloud Data
The first step is to capture the site using 3D laser scanners or LiDAR devices. These tools create raw point cloud data files with formats such as:
- .rcp / .rcs (ReCap-compatible files)
- .las / .laz (commonly used in GIS applications)
- .e57 (open vendor-neutral format)
- .pts / .ptx / .xyz (plain text point data)
Using a professional scanning service or your own scanning equipment ensures the precision necessary for accurate modeling.
Step 2: Prepare the Point Cloud with Autodesk ReCap
Once the scan is complete, open Autodesk ReCap, which is a powerful tool for processing, registering, and cleaning point cloud data. Within ReCap, you can:
- Remove unwanted background data, noise, or obstructions captured during the scan
- Register multiple scan positions into a single, aligned coordinate system
- Optimize point density and remove redundant data for faster performance
- Export the cleaned and registered scan as an .RCP (ReCap Project) file, which is directly compatible with Revit
This pre-processing step ensures better performance and higher accuracy within Revit.
Step 3: Link the Point Cloud in Revit
Now it’s time to bring the point cloud into Revit and use it as a reference for modeling:
- Open your existing Revit project or start a new one.
- Navigate to Insert > Point Cloud from the ribbon.
- Choose the .RCP file and define insertion options such as Auto – Center to Center, Auto – Origin to Origin, or manual placement.
- Once inserted, the point cloud will appear in your Revit views, allowing you to zoom, pan, rotate, and slice through it.
Ensure the units and coordinate system match your Revit project settings to avoid misalignment.
Step 4: Start Modeling Over the Point Cloud
Now that the point cloud is in place, use it as a visual guide to build your Revit model accurately. Start by:
- Drawing walls manually over the scan or using tools like Wall by Face
- Creating floors, ceilings, and roofs that align with point cloud geometry
- Inserting doors, windows, and other components based on measurements from the scan
- Modeling beams, columns, stairs, and other structural elements visible in the cloud
Because Revit does not auto-convert point clouds into geometry, you’ll be manually interpreting the shapes. Work in orthographic views for better precision and clarity.
Step 5: Use Tools to Speed Up the Process
If you’re working on a large or complex project, manual modeling can be time-consuming. Fortunately, there are third-party tools and plug-ins that integrate with Revit and automate parts of the process:
- ClearEdge3D EdgeWise – Extracts walls, pipes, and structure from point clouds using AI-based pattern recognition
- PointCab – Offers fast 2D plan creation and section extraction for modeling
- Faro As-Built for Revit – Extends Revit’s capabilities with tools for geometry fitting and object recognition from point clouds
These tools are highly recommended for firms handling multiple scan-to-BIM projects or needing faster turnaround.
Step 6: Verify and Finalize the Model
After you’ve modeled the structure over the point cloud:
- Use Revit’s measurement tools to cross-verify dimensions with actual scanned data
- Switch to section and elevation views to confirm alignment with the cloud
- Compare the model against the point cloud in 3D views to detect any missing or misaligned components
- Refine your model for accuracy and completeness before exporting or sharing
This final QA step is essential to ensure your BIM deliverables are precise and construction-ready.
Tips for Better Results
- Work in isolated regions: Use section boxes to hide irrelevant parts of the point cloud and reduce processing load.
- Create reference levels and grids early: This ensures consistency across your Revit model.
- Color-code your scans: Differentiate structural, architectural, and MEP features using colored point clouds for easier modeling.
- Monitor file performance: Save your work often and use worksets to manage large files effectively.
Following these best practices will help you avoid common pitfalls in scan-to-BIM modeling.
Conclusion
Converting a point cloud to a 3D model in Revit is a powerful method for bringing the physical world into the digital design space. While the process requires technical knowledge and careful attention to detail, the outcome is a highly accurate, intelligent model that supports decision-making and design efficiency. From site capture to Revit modeling, using point clouds offers unmatched precision and brings significant value to renovation, retrofitting, and documentation workflows.
By combining Revit, Autodesk ReCap, and advanced third-party tools, you can transform raw scan data into accurate, information-rich BIM models that are ready for analysis, coordination, and construction.
